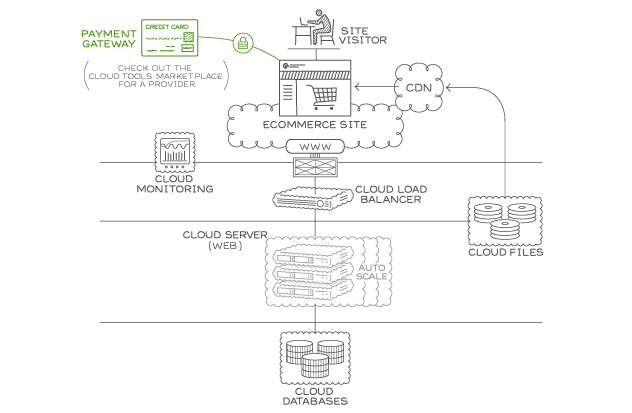

Configuration notes:

• 3-tier, cloud-based architecture
• Customer credit card information stored in third-party payment gateway
• Web tier containing product catalog logic built on Cloud Servers
• Application tier built on Cloud Servers stores shopping cart and checkout logic
• Transactional data stored either in Cloud Databases or a database running on a Cloud Server in the same Cloud Network

Service recommendations:

• Choose a managed cloud account to save time by letting us manage your infrastructure

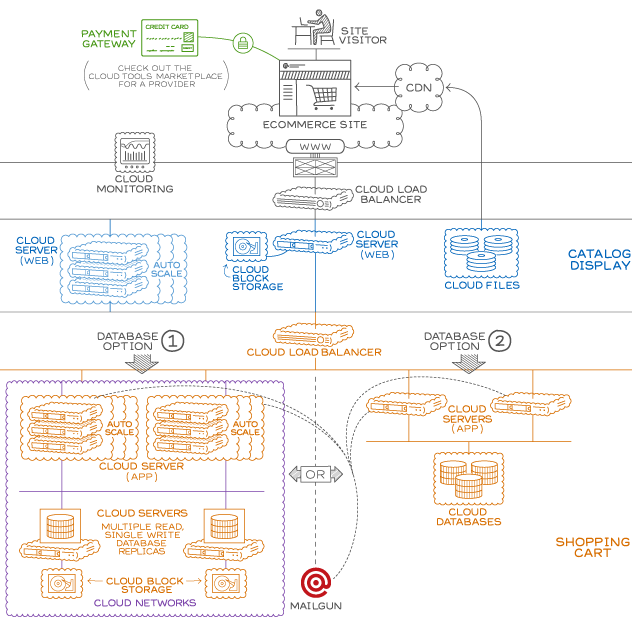

Configuration notes:

• 3-tier, hybrid (cloud + dedicated) architecture
• Customer credit card information stored in third-party payment gateway
• Web tier containing product catalog logic built on Cloud Servers
• Application tier built on Cloud Servers stores shopping cart and checkout logic
• Transactional data stored in dedicated servers

Service recommendations:

• Choose a managed cloud account to save time by letting us manage your infrastructure

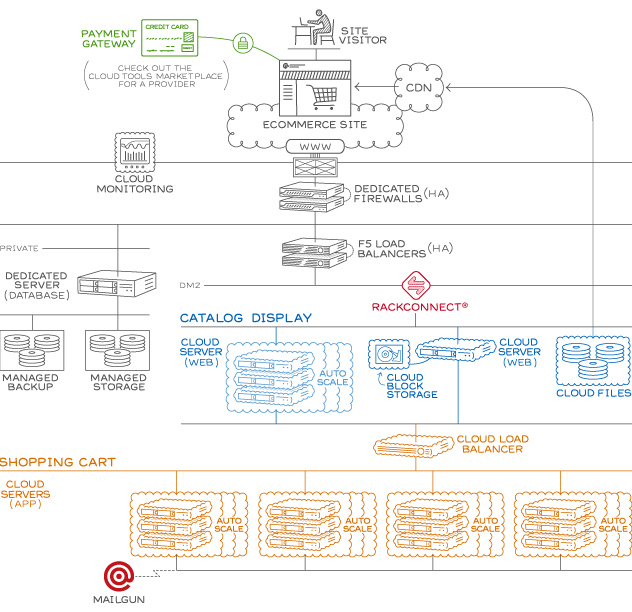

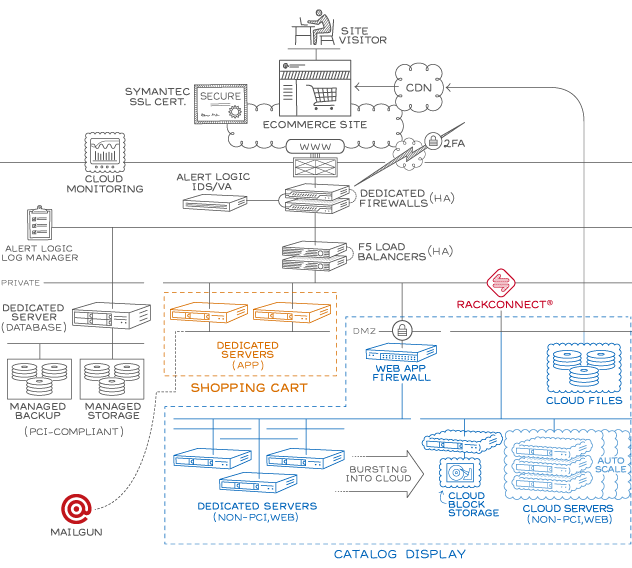

Configuration notes:

• 3-tier, self-contained, PCI-capable hybrid (cloud + dedicated) architecture
• Customer credit card information stored in dedicated servers
• Web tier containing product catalog logic built on dedicated servers — can burst into Cloud Servers during high demand
• Application tier built on dedicated servers stores shopping cart and checkout logic
• Transactional data stored in dedicated servers

Service recommendations:

• Choose a managed cloud account to save time by letting us manage your infrastructure
• Select Critical Application Services for a super-aggressive SLA with a 100% production platform uptime guarantee and a 2x service level credit
• Work with our Advisory Services team to plan your seamless journey to the cloud

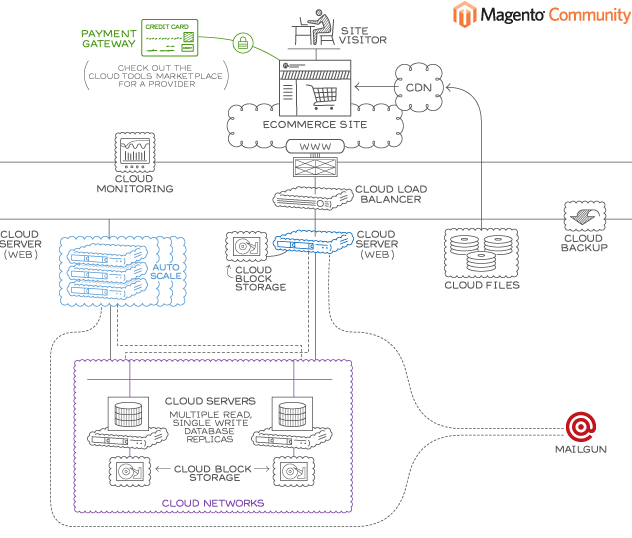

Configuration notes:

• Ideal for 0-100 concurrent visitors (fewer than 6 Admin users, fewer than 150,000 products)
• Pure cloud configuration (web server and database reside in the cloud)
• Cloud network segmentation between web and database servers
• Ability to add web and database servers for scalability
• Customer credit card information stored in third-party payment gateway

Service recommendations:

• Choose a managed cloud account to save time by letting us manage your infrastructure

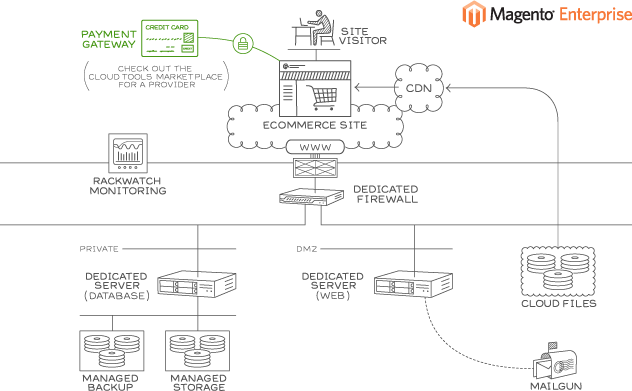

Configuration notes:

• Ideal for sites with 100-200 concurrent visitors (fewer than 6 Admin users, fewer than 150,000 products)
• Pure dedicated configuration
• Single web and database server segmented behind physical firewall
• Customer credit card information stored in third-party payment gateway
• We manage your infrastructure, saving you time

Configuration notes:

• Ideal for sites with 200-400 concurrent visitors (fewer than 6 Admin users, fewer than 150,000 products)
• Hybrid (cloud + dedicated) configuration
• Dual web and database servers segmented behind physical firewall
• Web tier containing product catalog logic built on dedicated servers — can burst into Cloud Servers during high demand with Magento Peak Demand Licenses
• Customer credit card information stored in third-party payment gateway

Service recommendations:

• Choose a managed cloud account to save time by letting us manage your infrastructure
• Work with our Advisory Services team to plan your seamless journey to the cloud

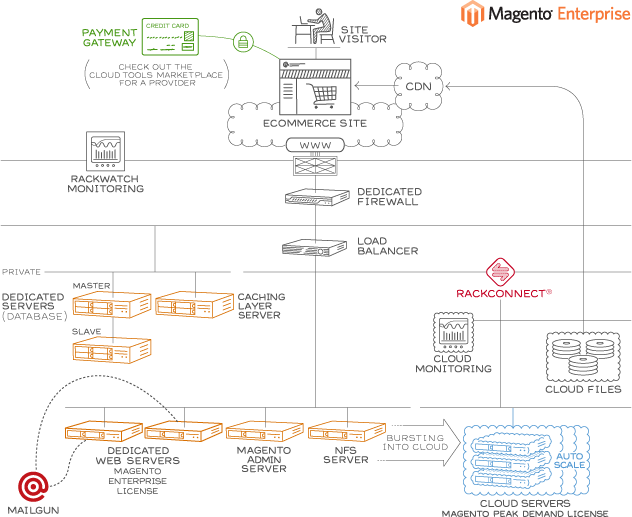

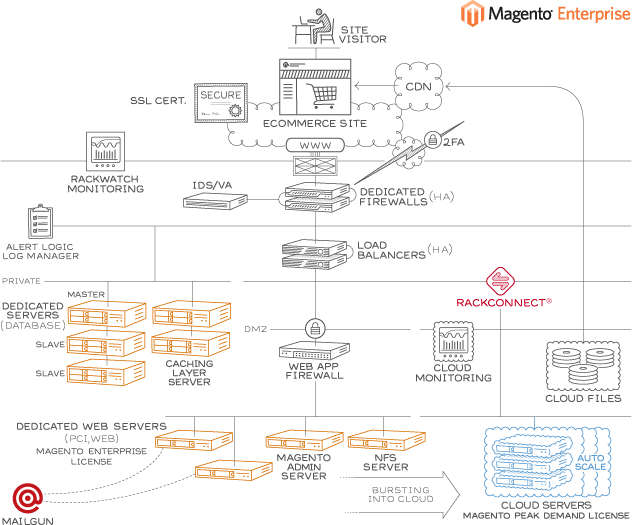

Configuration notes:

• Ideal for sites with 400-600+ concurrent visitors (fewer than 6 Admin users, fewer than 150,000 products)
• Hybrid (cloud + dedicated) configuration
• Customer credit card information stored in dedicated servers
• Cloud Servers provide scalability
• Transactional data stored in dedicated servers for security
• For multi-master replication in an active/passive setup, 2 billable DBA hours are required

Service recommendations:

• Choose a managed cloud account to save time by letting us manage your infrastructure
• Select Critical Application Services for a super-aggressive SLA with a 100% production platform uptime guarantee and a 2x service level credit
• Work with our Advisory Services team to plan your seamless journey to the cloud
